Midrange Corner Horn Progress

Here is the corner with ribs attached to the walls for bending and holding the side flares.


Corner With Side Flare Ribs Attached
Corner With Side Flare Ribs Attached
I added two more core braces to the Midrange corner horn core.  Now the sides of the core conform to the correct curve.  Here is a view of the core with four braces:


Core Flare With Four Braces In Approximate Position In Corner
Core Flare With Four Braces In Approximate Position In Corner
With the core flare positioned, it is possible to begin to cut out a template for one of the side flare halves.  Here is a piece of corrugated cardboard set adjacent to the lower right side flare for fitting.

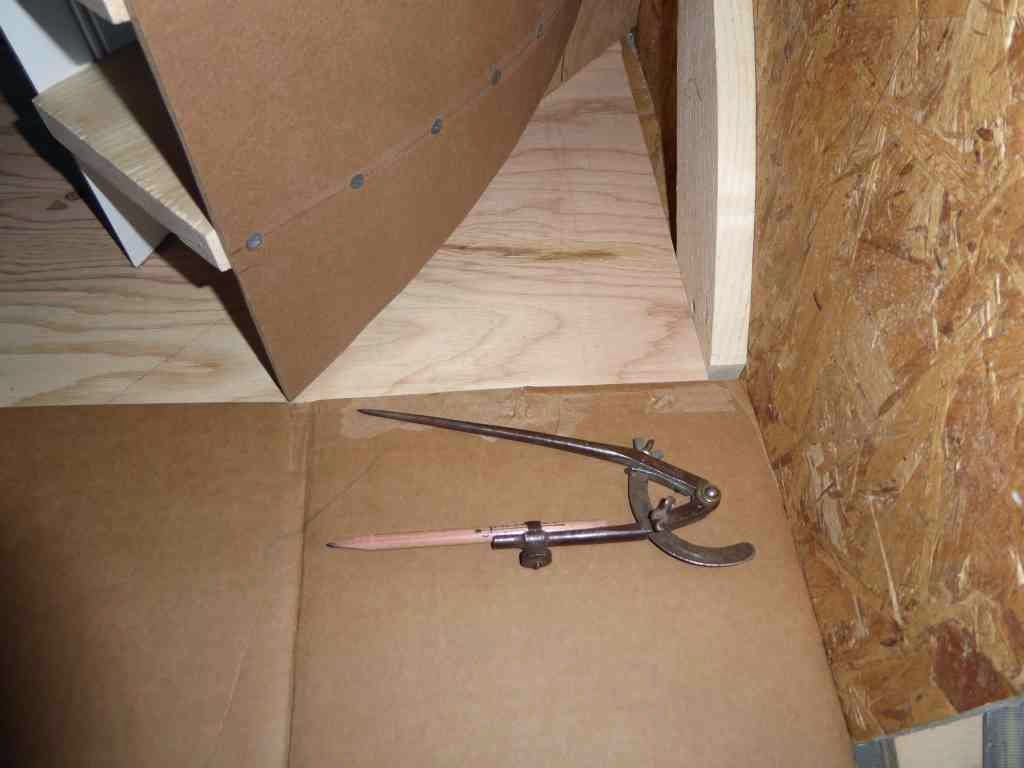

Preparing To Mark And Cut A Side Flare Template
Preparing To Mark And Cut A Side Flare Template
After Marking And Cutting The Template To Fit The Side Flare
After Marking And Cutting The Template To Fit The Side Flare
Side Flare Template Nearly Cut To Fit Side Flare
Side Flare Template Nearly Cut To Fit Side Flare
At this point, I began to check the fit of the template in the other four side flare positions.  While the template is still a little too large to fit, I will be using it to mark and cut four side flares from the Masonite paneling.
