Tuesday, May 19, 2015

Corner Midrange Horn Adhesive Drying

Today, the corner midrange horn center flare assembly is further fitted and provided with a wood plug to close the opening adjacent to the mouth ends of the two small horns constructed yesterday.

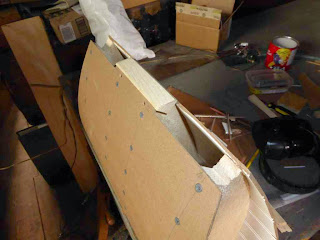

Here is a view of the center flare assembly with the wood plug positioned over a gap.


Corner Midrange Horn - Wood Plug Over Gap
Corner Midrange Horn - Wood Plug Over Gap

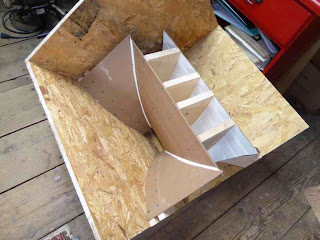

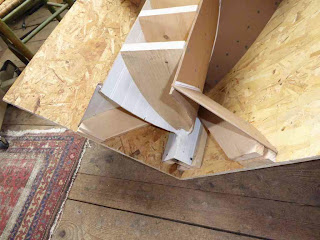

I applied flexible adhesive caulk to the joints in the horn flares.  The adhesive will dry overnight.


Corner Midrange Horn - Adhesive Applied To Joints
Corner Midrange Horn - Adhesive Applied To Joints


Corner Midrange Horn - Adhesive Applied To Joints
Corner Midrange Horn - Adhesive Applied To Joints
I conducted a test of the frequency response by holding a small square baffle with attached small two-inch driver taken from a Cambridge Soundworks computer sound system over one of the throats.  Driven by a sine wave generator, at least to my ear, the horn appears to have useful output from about 300Hz to about 3000Hz.
