Wednesday, May 20, 2015

Midrange Corner Horn - Fitting The Driver Pair

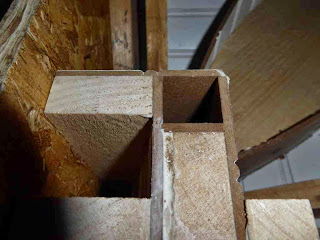

The lower driver flange is fastened to the horn throat after marking and countersinking for two mounting fasteners and after applying flexible adhesive caulk to the horn throat perimeter.  The square access hole was enlarged to provide access to the lower horn throat.

Midrange Corner Horn - Lower Driver
Midrange Corner Horn - Lower Driver

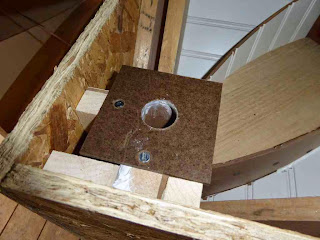

The lower horn throat flange is now fastened on over the adhesive


Midrange Corner Horn - Lower Driver
Midrange Corner Horn - Lower Driver
For the upper driver, a little material has to be removed with a very sharp wood chisel before the flange can be glued and fastened.



Midrange Corner Horn - Upper Driver
Midrange Corner Horn - Upper Driver


Midrange Corner Horn - Upper Driver
Midrange Corner Horn - Upper Driver

Midrange Corner Horn - Upper Driver
Midrange Corner Horn - Upper Driver
 One of the screw fasteners interferes with fasteners already in the wood so a weight is placed over the flange to hold it in place while the adhesive dries.


Midrange Corner Horn - Upper Driver
Midrange Corner Horn - Upper Driver

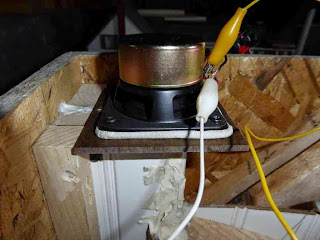

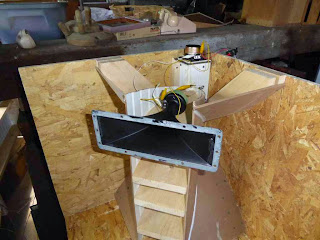

 The upper and lower drivers are mounted on their respective flanges and wired in phase and in parallel.  In addition, a Magnavox tweeter horn is connected across the driver terminals and protected by a 10uF series capacitor.

Midrange Corner Horn - Both Drivers Installed And Wired With Horn Tweeter
Midrange Corner Horn - Both Drivers Installed And Wired With Horn Tweeter


Midrange Corner Horn - Both Drivers Installed And Wired With Horn Tweeter
Midrange Corner Horn - Both Drivers Installed And Wired With Horn Tweeter

Midrange Corner Horn - Upper Driver Installed - Close-Up
Midrange Corner Horn - Upper Driver Installed - Close-Up

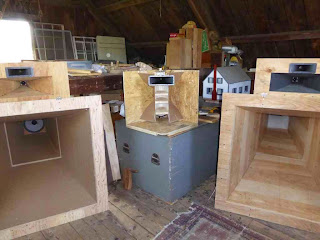

Here is a view of the midrange corner horn and tweeter set up for testing.


Midrange Corner Horn And Tweeter Horn Set Up For Testing
Midrange Corner Horn And Tweeter Horn Set Up For Testing
There is a pretty smooth transition between the midrange and tweeter at about 2500Hz.  The midrange response extends to a little below 300Hz.  With both midrange drivers connected, the efficiency of the corner midrange horn appears to be comparable with the efficiency of the Magnavox tweeter horn.  The DC impedance of the two midrange drivers in parallel is 4 Ohms.
