Monday, September 28, 2015

New Folded Bass Horn - Even More Progress

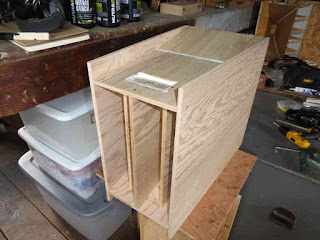

The next two panels are rectangles to enclose the second section of the horn.  The horn throat is on the right in this photo.
Folded Bass Horn - Next Two Panels
Folded Bass Horn - Next Two Panels

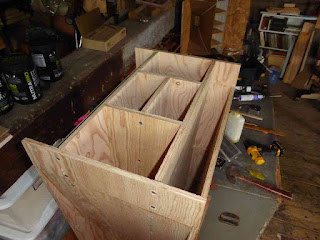

 Here is another view from the end opposite the throat.

Folded Bass Horn - Next Two Panels
Folded Bass Horn - Next Two Panels

 It is necessary to make small rectangular sides for the "turning" region of the first horn folds.  One is visible in front and the other in the back of the assembly.


Folded Bass Horn - Small Rectangular Sides
Folded Bass Horn - Small Rectangular Sides

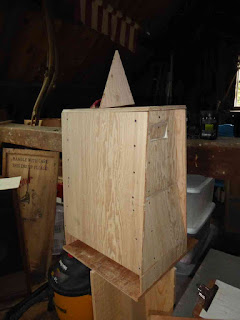

 Here is a triangular jig on top of the cover temporarily placed over the end opposite the throat.  The purpose of the triangle is to help to establish the angles for cuts on panel edges.


Folded Bass Horn - Cover And Triangular Jig
Folded Bass Horn - Cover And Triangular Jig
Here is a look down into the first fold showing short braces in place to secure four panels from vibration.

Folded Bass Horn - Small Braces
Folded Bass Horn - Small Braces

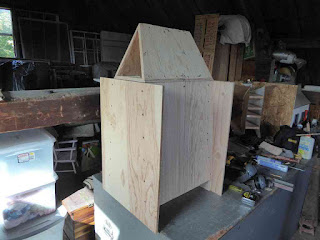

Here are two more side panels installed to establish the contour of the third horn section after the second fold.  The final flare core sides are in place making the "roof" at the top.

Folded Bass Horn - Two More Side Panels and "Roof"
Folded Bass Horn - Two More Side Panels and "Roof"
And here are two additional side panels fastened onto the assembly to enclose the third horn section.

Folded Bass Horn - Two Additional Side Panels
Folded Bass Horn - Two Additional Side Panels

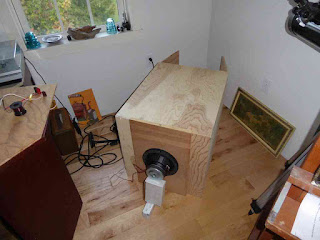

I had no problems carrying this folded bass horn from the barn attic through the doorway into the adjoining listening room.  Here is the bass horn assembly with side panels attached to the "roof" and a baffle over the throat end.  There is an eight-inch bass driver attached over the throat for preliminary testing.

Folded Bass Horn - Preliminary Testing
Folded Bass Horn - Preliminary Testing

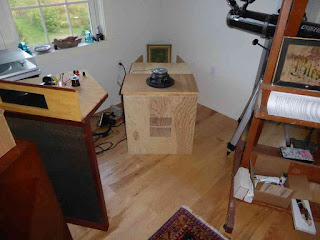

 Here is another view with the driver removed to show the square throat opening in the center.

Folded Bass Horn - Preliminary Testing
Folded Bass Horn - Preliminary Testing
I disconnected my Klipsch Short Horn from the right channel in my listening room and set up the folded bass horn in the corner just to see how it might sound.  The bass is very deep, tight, and solid even though the horn construction is still incomplete!

Check out the video at New Folded Bass Horn - Preliminary Testing.
